'63 11 window

Post pics and info of your rides here split windows only

Moderators: warb, Rawdyn, Leroy, byronbus, Tonz Magonz, dmb

Post Reply
User avatar
Cheeseboard
DSKer
Posts: 123
Joined: Fri Sep 10, 2021 6:01 pm
Location: Victoria

Re: '63 11 window

Post by Cheeseboard »

If you can’t inspire people with stalled projects Rusty, nothing can.
Ideas man
Minister for Finance
Scared of wife finding out what I’ve spent
User avatar
Shaven
DSKer
Posts: 7420
Joined: Tue Sep 19, 2006 4:17 pm

Re: '63 11 window

Post by Shaven »

Looking good buddy 👏🏻
Only those whom drive a Dual Cab, Know what real driving is all about
User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

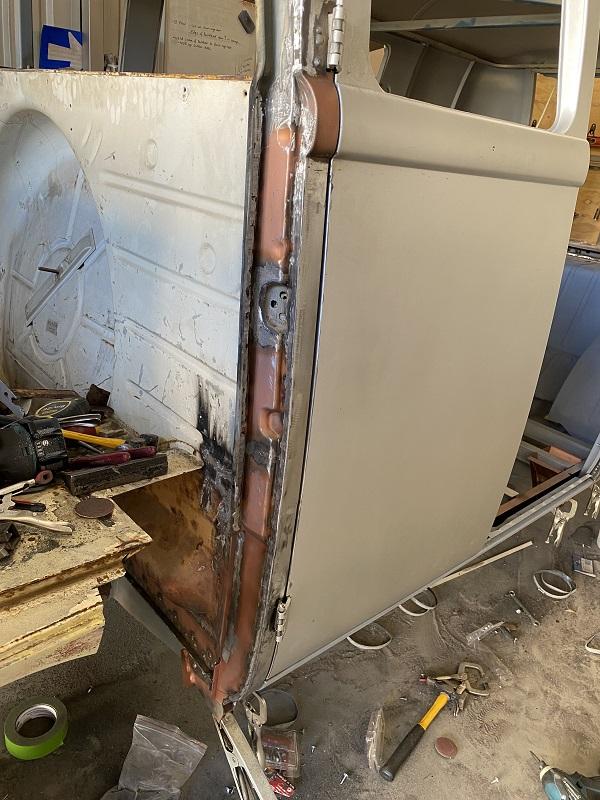

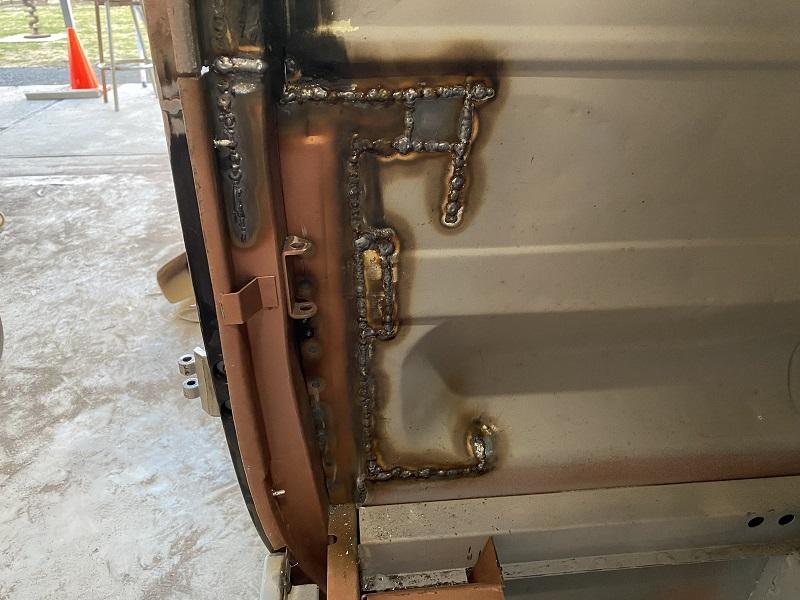

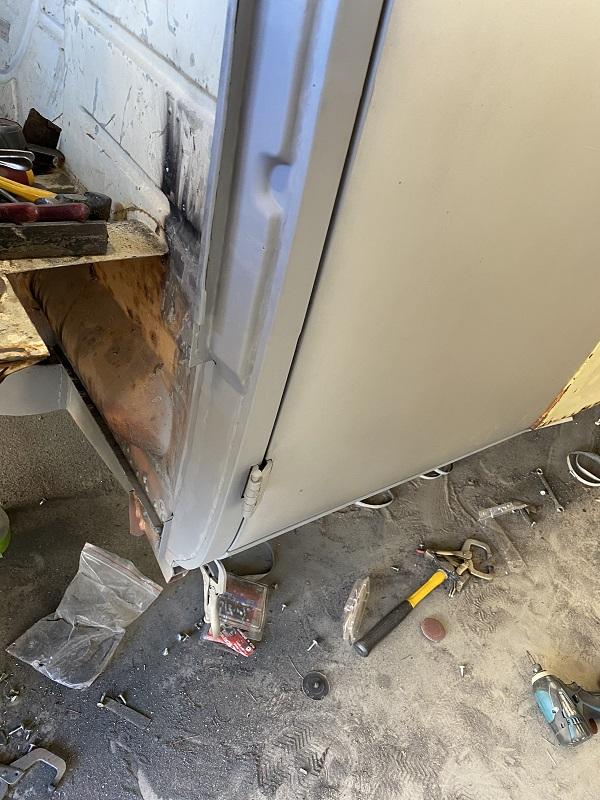

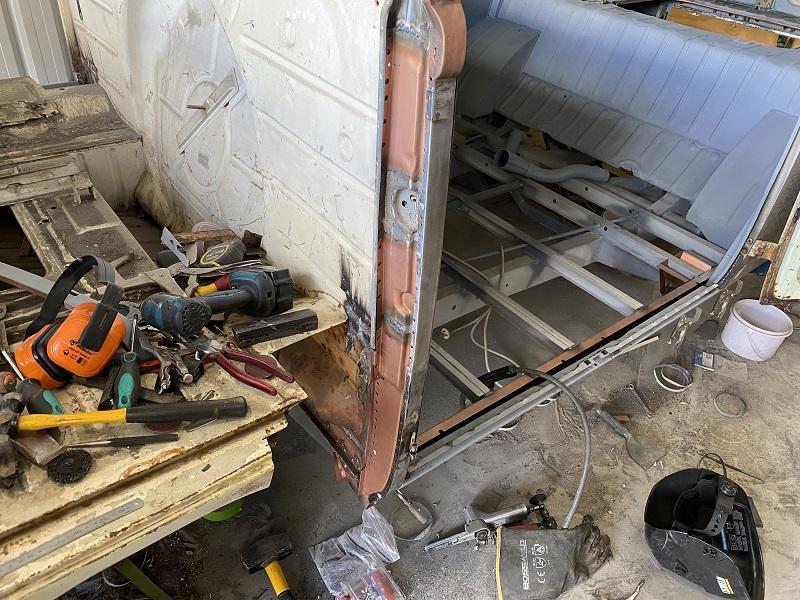

Cargo door side B pillar fitted and welded up. This was a tricky repair as I had to redo both hinge mounts. The autocraft skin required some tweaks to the hinge mount as it was nearly 4mm out of alignment. Happy with the outcome, still some grinding to finish off...

User avatar
Beatts
DSKer
Posts: 293
Joined: Wed May 30, 2018 11:23 pm
Location: Adelaide

Re: '63 11 window

Post by Beatts »

Great stuff Rusty, bit by bit your making good progress.

The cargo door looks like it fits real nice after redoing the hinge mounts. I bet that wasn’t easy.
User avatar
splitthis
DSKer
Posts: 1206
Joined: Wed Nov 28, 2007 8:47 pm
Location: Adelaide

Re: '63 11 window

Post by splitthis »

Killing it as usual. Nice work mate.
Chasing any Neiman steering lock parts, will consider anything.
braddick
DSKer
Posts: 711
Joined: Fri May 17, 2013 1:07 pm

Re: '63 11 window

Post by braddick »

Great stuff mate
Almost done a full 360 on the bus now
Keep up the great work
User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

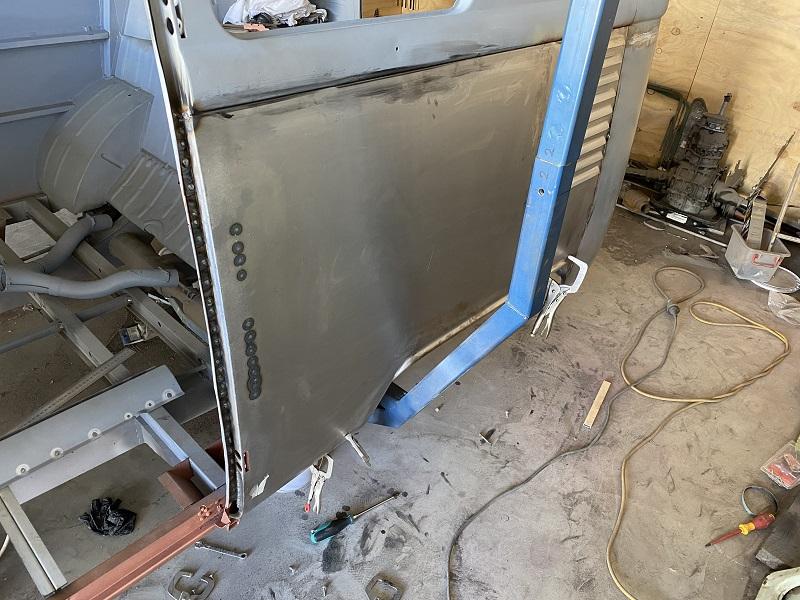

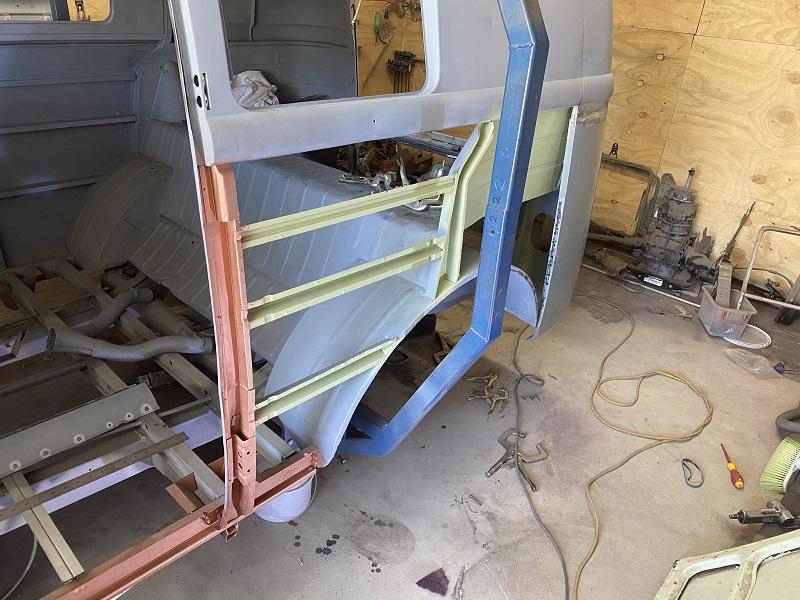

Need to get this build up to date as I approach the 12 month mark of the build. Short side is on. Paint and weld through primer in the structure and inside of the skin. Some excess glue to clean off and welds to grind...

User avatar
067DUB
DSKer
Posts: 2780
Joined: Mon Oct 24, 2011 5:09 pm

Re: '63 11 window

Post by 067DUB »

Well done mate, very nice work
User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

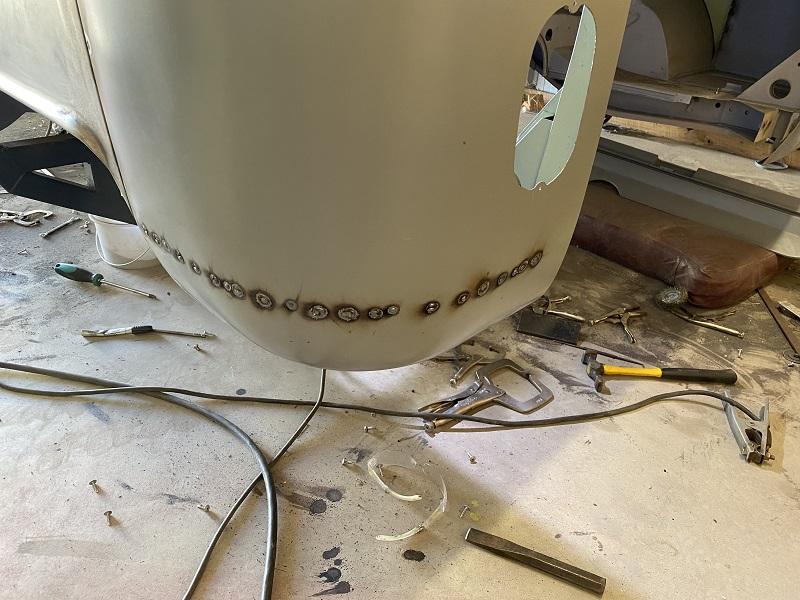

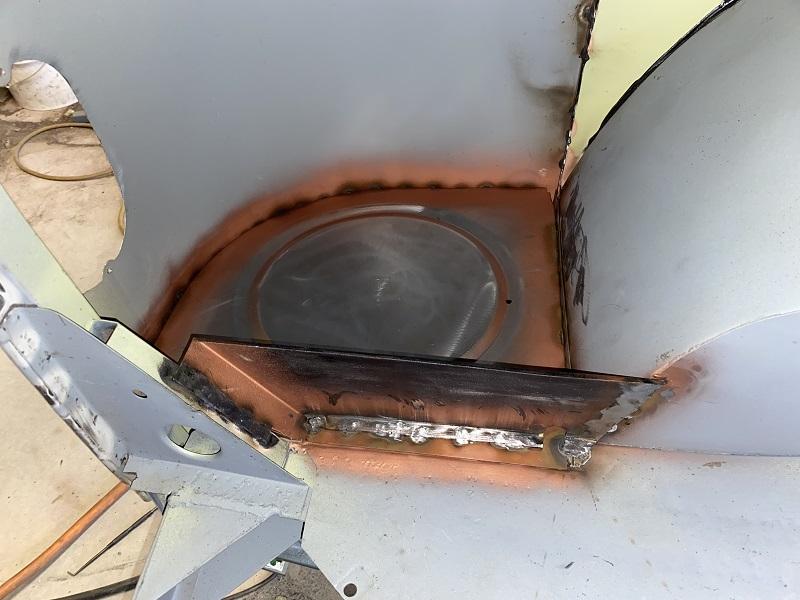

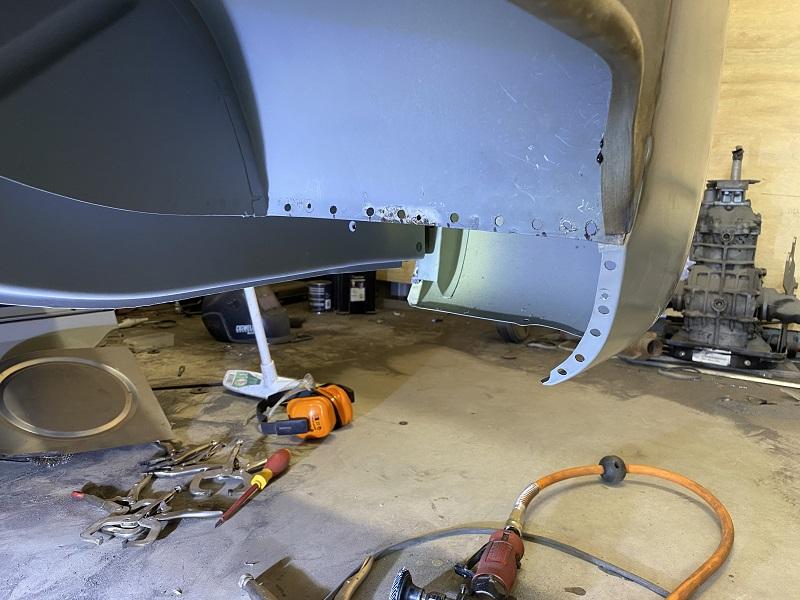

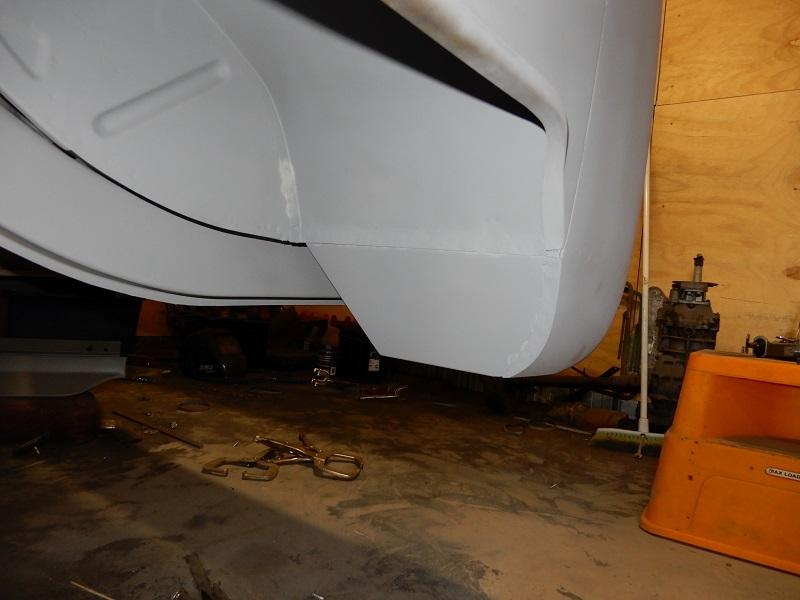

Left side battery tray and splash panel welded in. This battery tray required a little more re shaping then the right side but I forgot to get pics.

User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

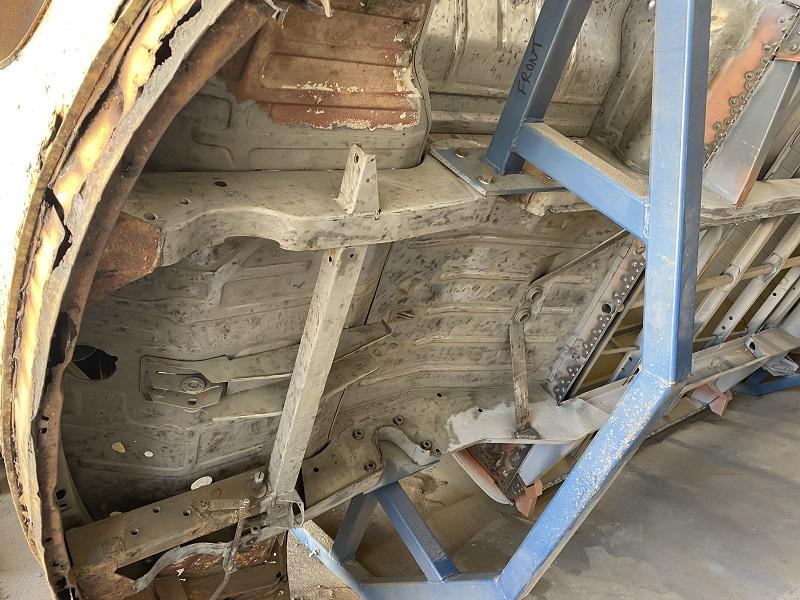

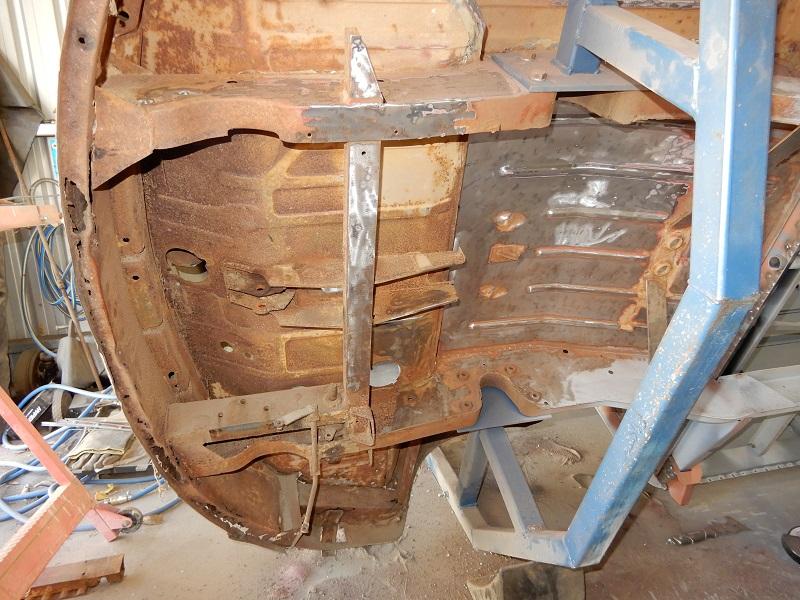

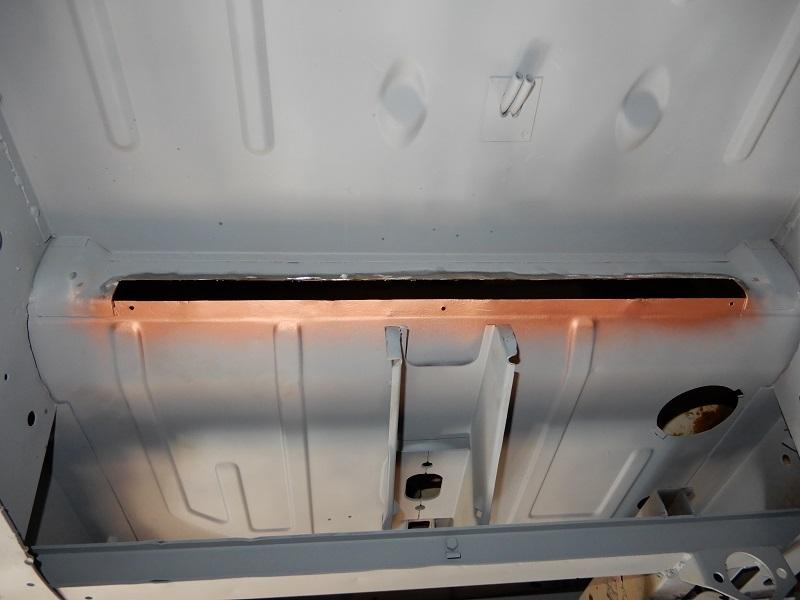

Cross member in front of the beam removed and front section of the heater tube removed to make it easier to strip and sandblast. Left a few areas as they will either be getting replaced or getting more attention when i get to them. Stripped, blasted, rust treated and primed. Much cleaner under here now.

User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

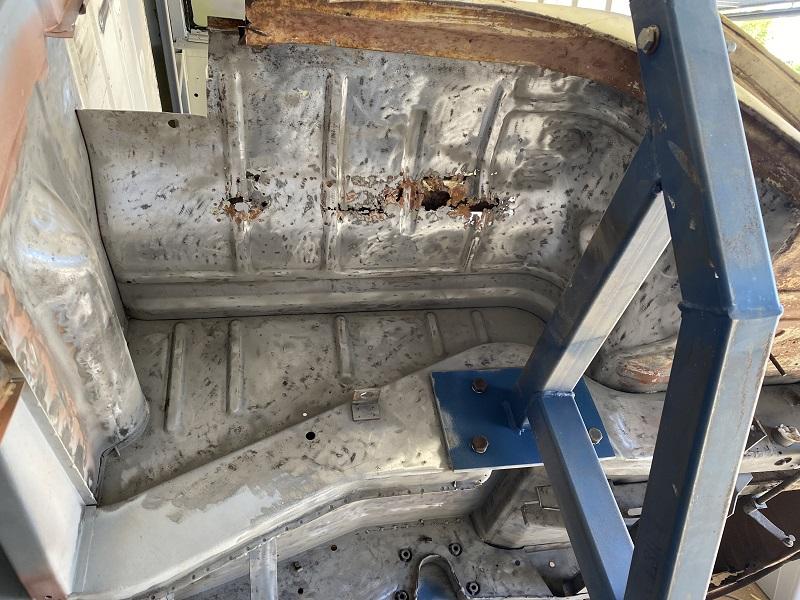

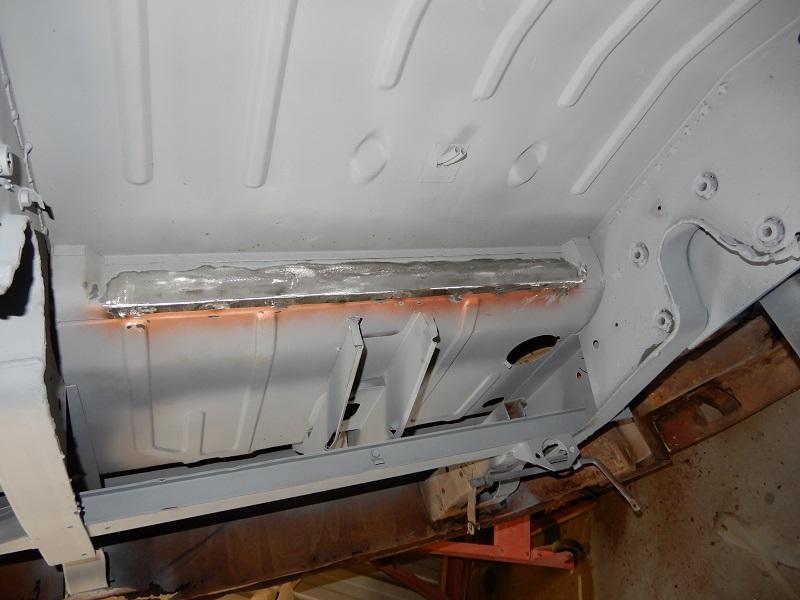

Sandblasting showed that the metal behind the cross member was very pitted and had some rust holes. Cut the section out and replaced before welding in the new panel.

braddick
DSKer
Posts: 711
Joined: Fri May 17, 2013 1:07 pm

Re: '63 11 window

Post by braddick »

Nice work rusty
User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

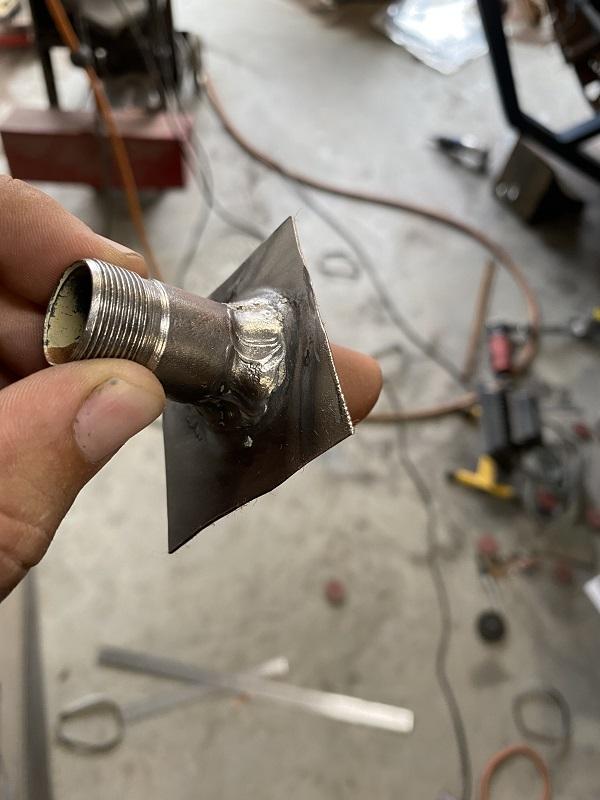

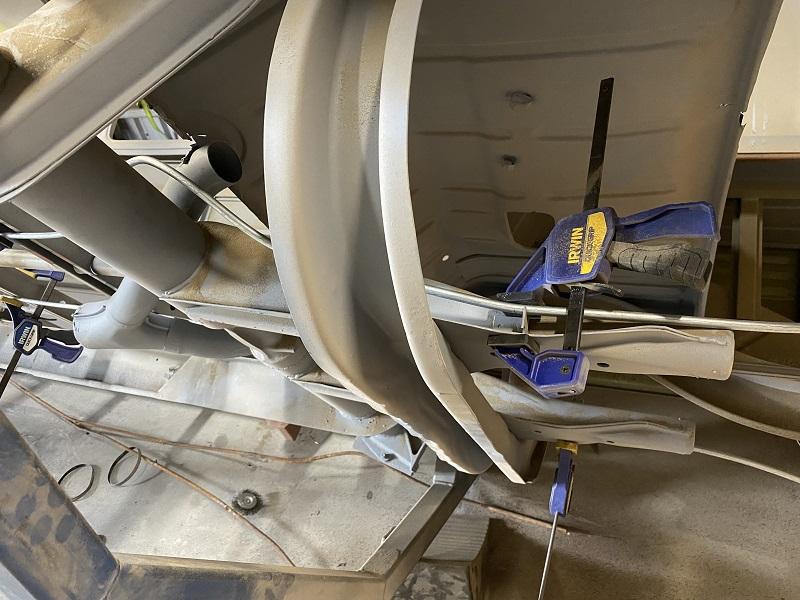

Cable guide tubes going in. Started with the heater cables. Removed the tap sections are rewelded like factory to avoid seeing the join. Welded back in, just need to grind back the welds.

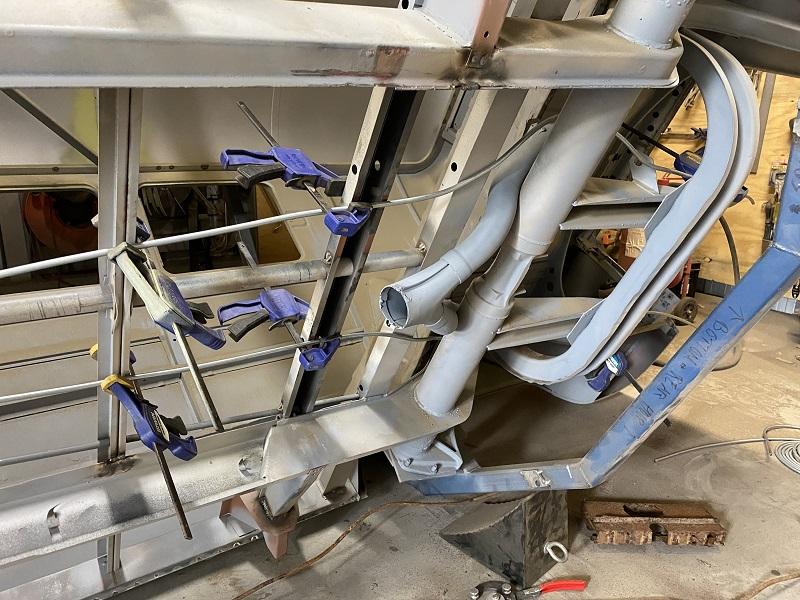

Clutch and accelerator tubes also installed. Flared the front part of the clutch tube as per factory. I have had the cables running through to make sure the bends weren't too tight. Front and rear cross members welded in place and welds ground back.

User avatar
red hot bus
DSKer
Posts: 265
Joined: Sun Jun 22, 2008 4:41 pm
Location: gawler, SA

Re: '63 11 window

Post by red hot bus »

Smashing it mate, well done. You’ll be cruising in no time.
Way too many projects
User avatar
MID WEST DUBBER
DSKer
Posts: 1128
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

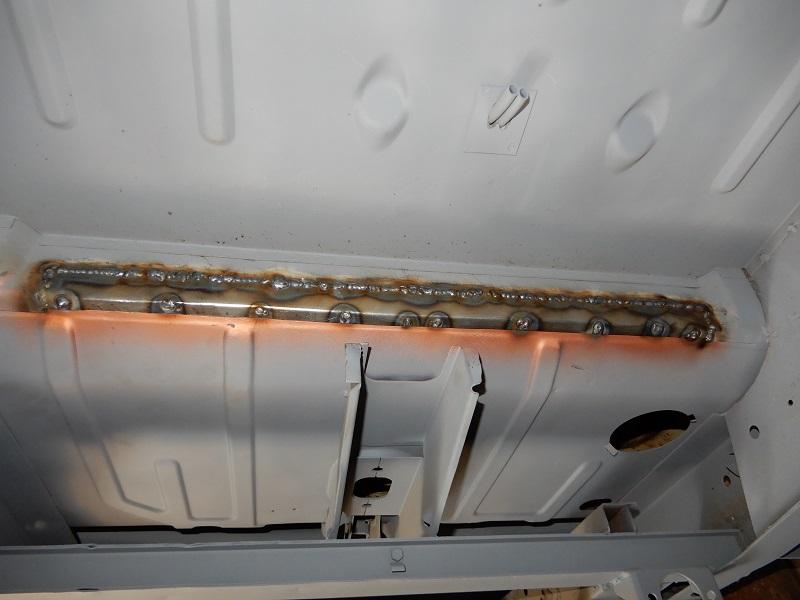

Cargo floor is welded in. Still some welding around the heater tubes to finish off but I am happy it's in. Used a tip from Brads mango build thread of drilling into the i beams to get the weld to penetrate slightly better. Plently of drilling, plenty of welding and grinding...
