Re: '63 11 window

Post by Cheeseboard »

Weather getting right for spending plenty of time in the shed Rusty.
Ideas man
Minister for Finance
Scared of wife finding out what I’ve spent
User avatar
MID WEST DUBBER
DSKer
Posts: 1126
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

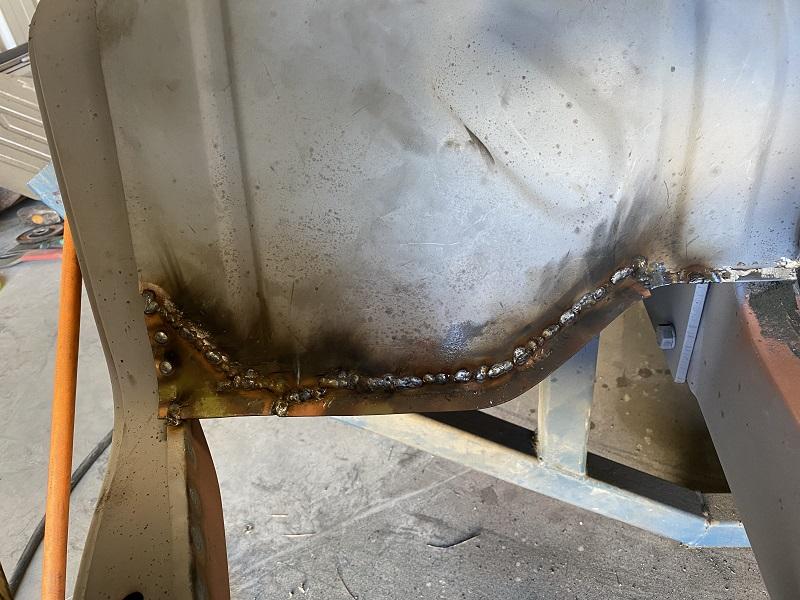

Repaired the bottom edge of the wheel tub and got the drivers side front floor welded in.

User avatar
63 left hooker
DSKer
Posts: 1183
Joined: Tue Nov 24, 2009 1:03 pm
Location: Northern Beaches Sydney

Re: '63 11 window

Post by 63 left hooker »

Great work as usual Rusty!
61 dc
67 beetle
User avatar
MID WEST DUBBER
DSKer
Posts: 1126
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

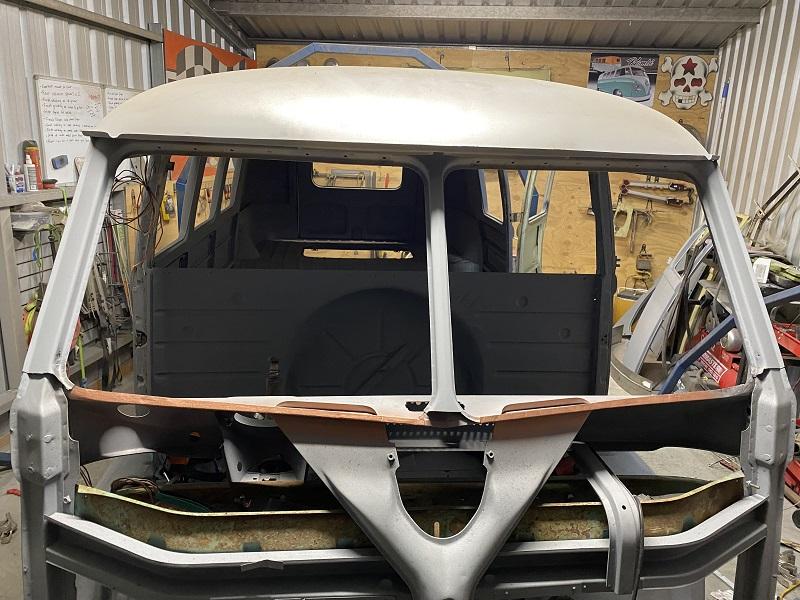

Repaired the rust on the lower edge of the windscreen/dash edge. Made the repair pieces a little bit higher and that allowed me to carefully linish the edge back...

vanell
DSKer
Posts: 1160
Joined: Sat Jul 15, 2006 3:58 pm

Re: '63 11 window

Post by vanell »

Front on this weekend mate? Coming along nicely, I’m impressed with your attention to details and patience, great to see how it’s all coming together
User avatar
MID WEST DUBBER
DSKer
Posts: 1126
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

Thanks Ian, front is now on and feel like things are moving in the right direction. I also cut and shut the bullet indicator mounts as the KF nose had them pointing in the air a little. Didn't get pics of this though...

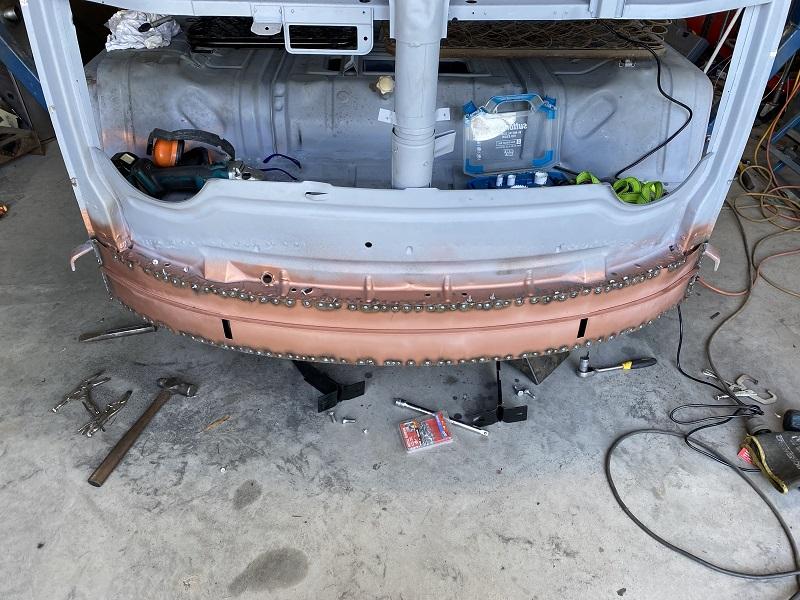

Outer valance welded in place....

Trial fit to see how it lines up...

Wiper holes didn't line up from the lower windscreen so these required cutting and moving. Forgot to get picks of this process other then this one...

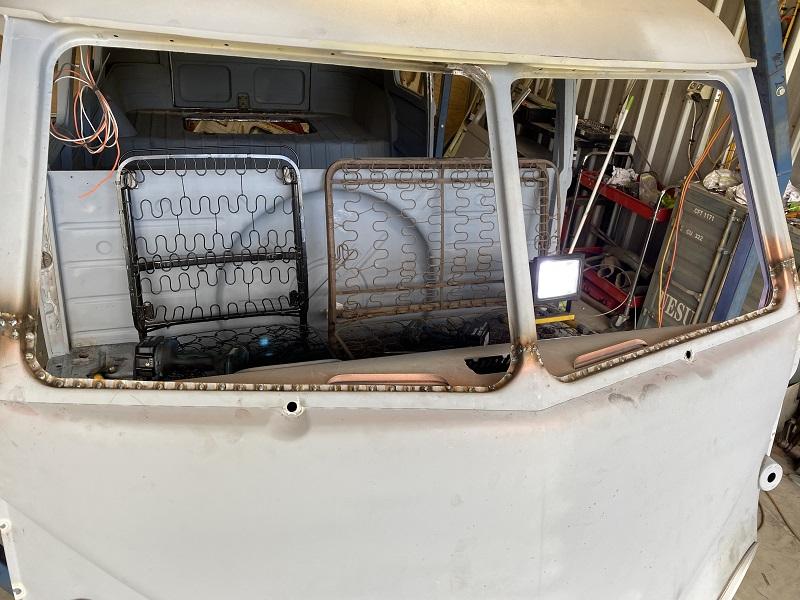

Lower windscreen lined up and plug welded from the back and headlight buckets welded in...

Made these jigs before pulling the nose off. Got the idea after seeing Ian use Coopers. Used them to help line everything up and get the windscreen gap dialed in...

Welded and grinding...

Edges plug welded and folded around to finish off the sides...

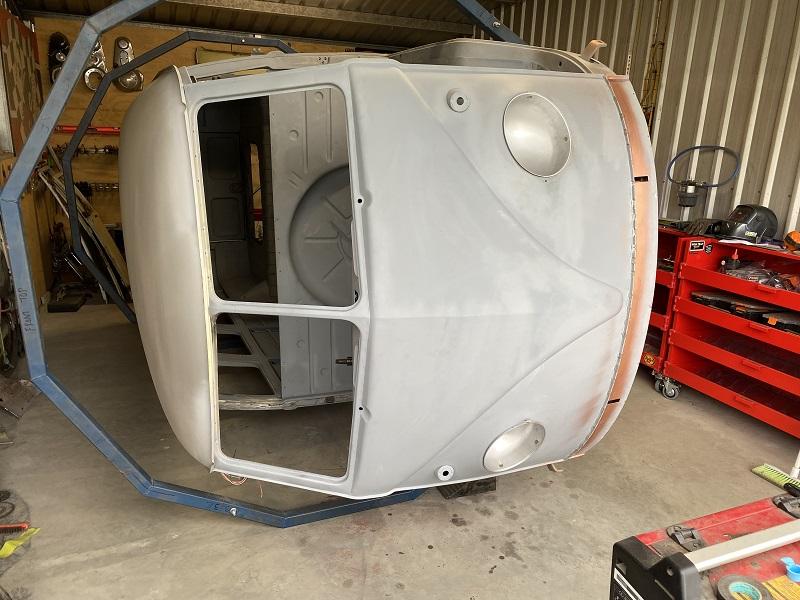

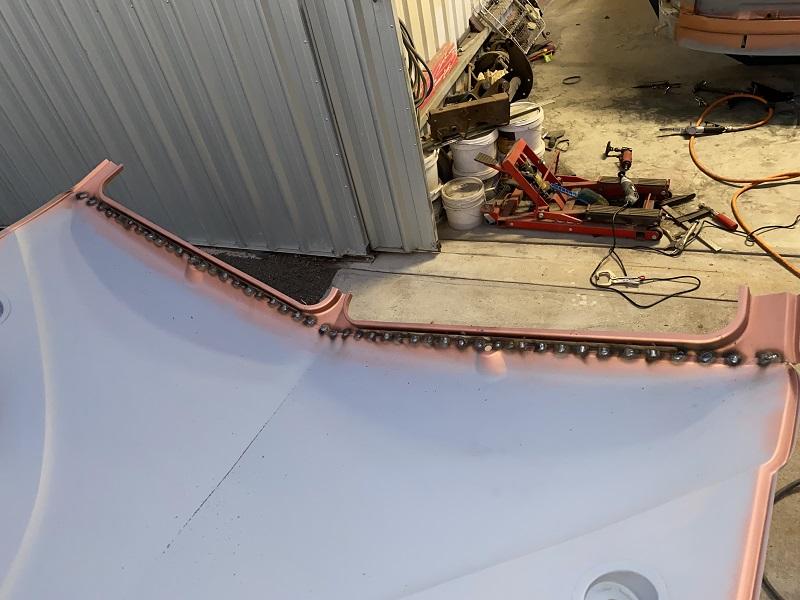

Rolled it over to plug weld the bottom edge from underneath...

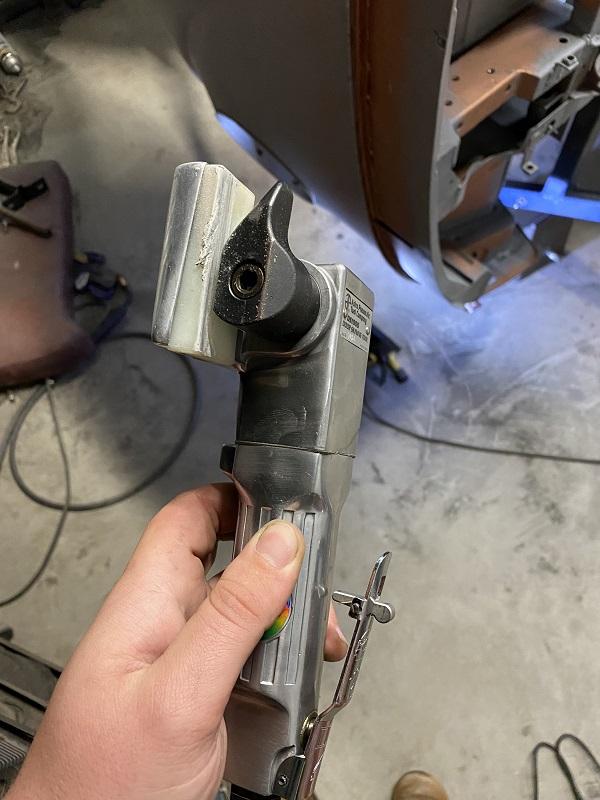

Used this door skinning tool to crimp the side and bottom flanges. It did a really neat job...
User avatar
splitthis
DSKer
Posts: 1204
Joined: Wed Nov 28, 2007 8:47 pm
Location: Adelaide

Re: '63 11 window

Post by splitthis »

Where did you get that tool from? I used the old hammer and dolly method and my forearm was on fire. Wouldn’t mind giving it a pass with one of them for insurance.
Chasing any Neiman steering lock parts, will consider anything.
User avatar
VRSenator065
DSKer
Posts: 523
Joined: Sun Jun 01, 2014 9:47 pm
Location: Gawler SA

Re: '63 11 window

Post by VRSenator065 »

That's a ton of progress mate, nice work.
User avatar
warb
Mod
Posts: 7291
Joined: Mon May 16, 2005 5:15 pm
Location: Penrith, Nsw, Australia
Contact:

Re: '63 11 window

Post by warb »

so good man...

@animal ... :shock: :? :twisted:

MID WEST DUBBER wrote: Sun Jun 05, 2022 7:46 pm Made these jigs before pulling the nose off. Got the idea after seeing Ian use Coopers. Used them to help line everything up and get the windscreen gap dialed in...
User avatar
MID WEST DUBBER
DSKer
Posts: 1126
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

splitthis wrote: Mon Jun 06, 2022 7:23 am Where did you get that tool from? I used the old hammer and dolly method and my forearm was on fire. Wouldn’t mind giving it a pass with one of them for insurance.
jbtools.com is where I got mine from Matt. Astro pneumatic ds1000 pneumatic door skinning tool
User avatar
splitthis
DSKer
Posts: 1204
Joined: Wed Nov 28, 2007 8:47 pm
Location: Adelaide

Re: '63 11 window

Post by splitthis »

Chers mate.
Chasing any Neiman steering lock parts, will consider anything.
User avatar
Beatts
DSKer
Posts: 293
Joined: Wed May 30, 2018 11:23 pm
Location: Adelaide

Re: '63 11 window

Post by Beatts »

You’re smashing it Rusty, you’ll be painting in no time.
User avatar
Cam Biscuit
DSKer
Posts: 1492
Joined: Sun Feb 26, 2012 4:56 pm
Location: Radelaide

Re: '63 11 window

Post by Cam Biscuit »

Solid work Rusty!
User avatar
scotty*85vw
DSKer
Posts: 1242
Joined: Thu Sep 09, 2010 9:34 pm

Re: '63 11 window

Post by scotty*85vw »

MID WEST DUBBER wrote: Mon Jun 06, 2022 9:36 pm
splitthis wrote: Mon Jun 06, 2022 7:23 am Where did you get that tool from? I used the old hammer and dolly method and my forearm was on fire. Wouldn’t mind giving it a pass with one of them for insurance.
jbtools.com is where I got mine from Matt. Astro pneumatic ds1000 pneumatic door skinning tool
Was going to ask same question iv been hunting everywhere for that tool and couldn’t find it

Coming along nice man 😎
User avatar
MID WEST DUBBER
DSKer
Posts: 1126
Joined: Fri Jan 06, 2012 4:49 pm
Location: Near Horsham, VIC

Re: '63 11 window

Post by MID WEST DUBBER »

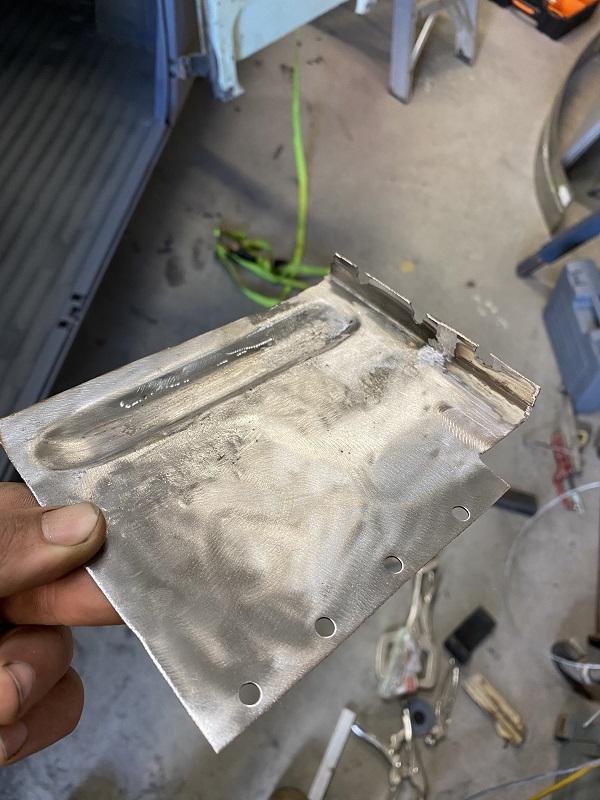

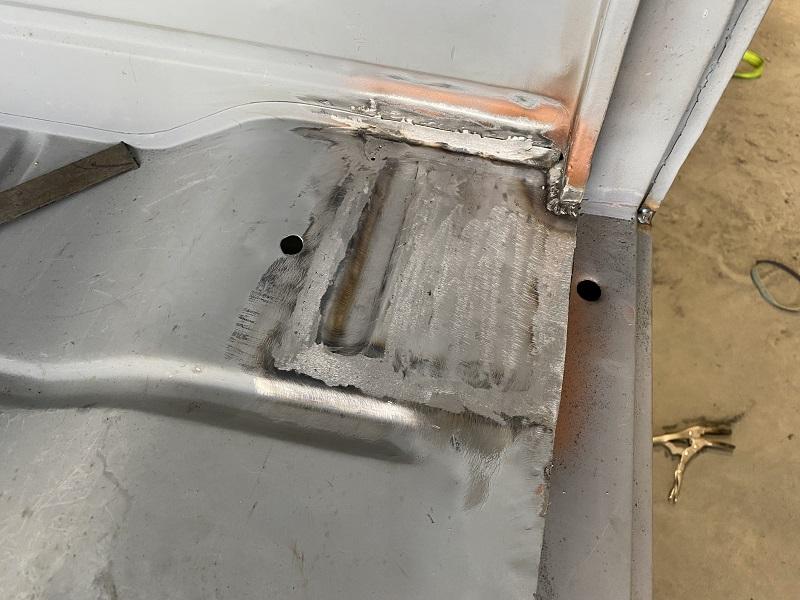

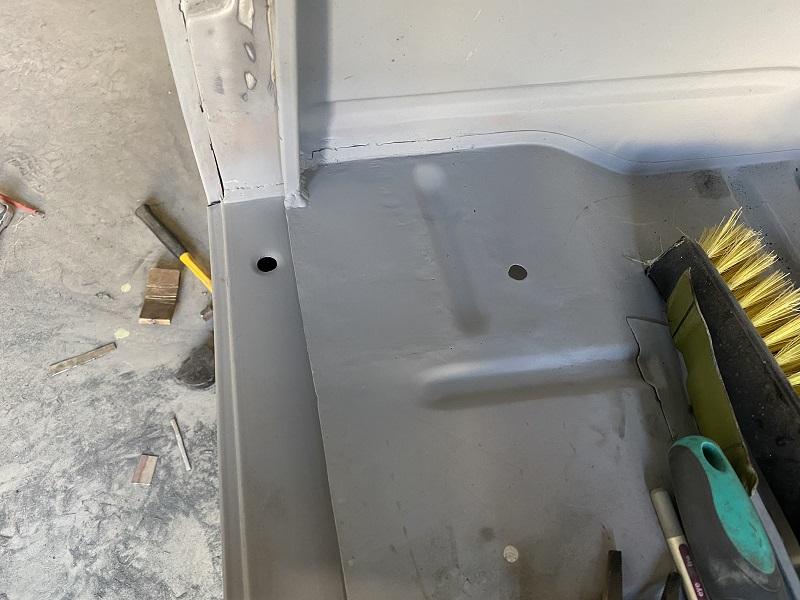

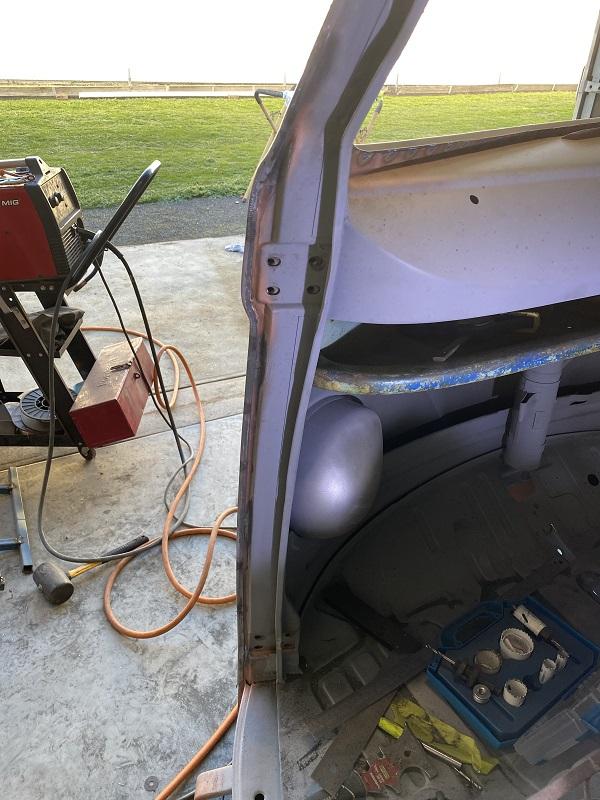

Some more work completed on the front wheel tubs. Filling in the gaps and getting ready to fab the lower front seat belt mounts. Will be recreating the factory style mounts..
